Modal Electronics Carbon 8M / CarbonM8 Experimental Digital Synthesizer Module

Polyphony

True 8 voice polyphonic

MPE

Supports MPE-compatible MIDI controllers, allowing you to apply polyphonic control and expression to individual notes

Oscillators

Two independent high-resolution digital oscillators

56 complex Digital Core Waveforms per oscillator, incl. 18 Digital Algorithms and 38 sophisticated Wavetables

Advanced XCore Modifiers, incl. Wave Shape, Wave Fold, Phase Distortion, and others

Extended Oscillator Drift

Vintage Parameter

Digital Core Waveforms

Filter

34 resonant Filter types including morphable and static filters

Cutoff Scaling with two distinctive modes

Three dedicated envelope generators for AMP, MOD and FILTER that can be accessed independently or all three simultaneously, including negative (reverse) versions for MOD and FILTER ENVs

Three audio-rate LFOs with tempo sync (two poly, one global) with over 15 different shapes

Eight assignable modulation slots and four additional fixed modulation routings for common assignments with 12 modulation sources and 55 modulation destinations

Sequencer and Arpeggiator

Polyphonic Real-time sequencer with 512 notes and four recordable/editable parameter animations (Delay FX, LFOs, sequencer and arpeggiator can be either clocked internally or externally)

Polyphonic Step Sequencer with 64 steps, 8 notes per step, 4 lanes of Parameter-Lock style animation, Step Input mode, multiple playback modes including gate modes and rest functionality

Built-In sophisticated programmable arpeggiator of 32 steps with rest capability with up to 2048 steps before repeating

FX

Three independent and user-configurable stereo FX engines for 26 Effects algorithms, incl. Drive, Chorus, Phaser, Flanger, Tremolo, LoFi, Rotary, Stereo Delay, Ping-Pong Delay, X-Over Delay and Reverb.

User Memory

500 patch memories, all fully editable and ships with 300 factory programs

100 sequencer presets that can be linked to any patch for quickly loading arrangements

100 FX presets

8 Quick Recall slots accessible from the panel for quickly loading your favourite patches

Controls and Performance

13 switched encoders, 13 encoders, 9 buttons

4-axis joystick that can be assigned to a huge range of modulation destinations and virtually ‘locked’ when desired

Multiple voice modes, Mono, Poly, Unison 2, unison 4, unison 8, Stack 2 and Stack 4

Glide/Portamento with both legato and staccato modes

Chord Invert control to easily create chord inversions and variation

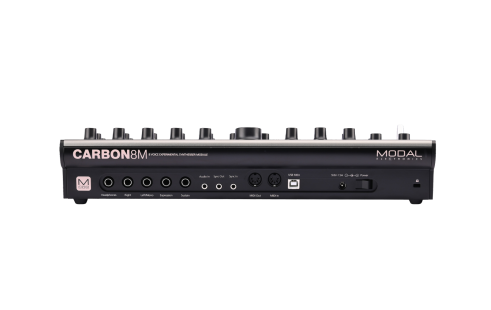

Inputs and Outputs

6.35 mm / 1/4″ TS dual-mono line outputs

6.35 mm / 1/4″ TRS headphone output

3.5 mm / 1/8″ TRS stereo audio input

MIDI DIN In and Out

3.5 mm / 1/8″ TS Analogue clock sync In and Out

Class-compliant MIDI over USB connection

6.35 mm / 1/4″ TRS expression pedal input

6.35 mm / 1/4″ TS sustain pedal input

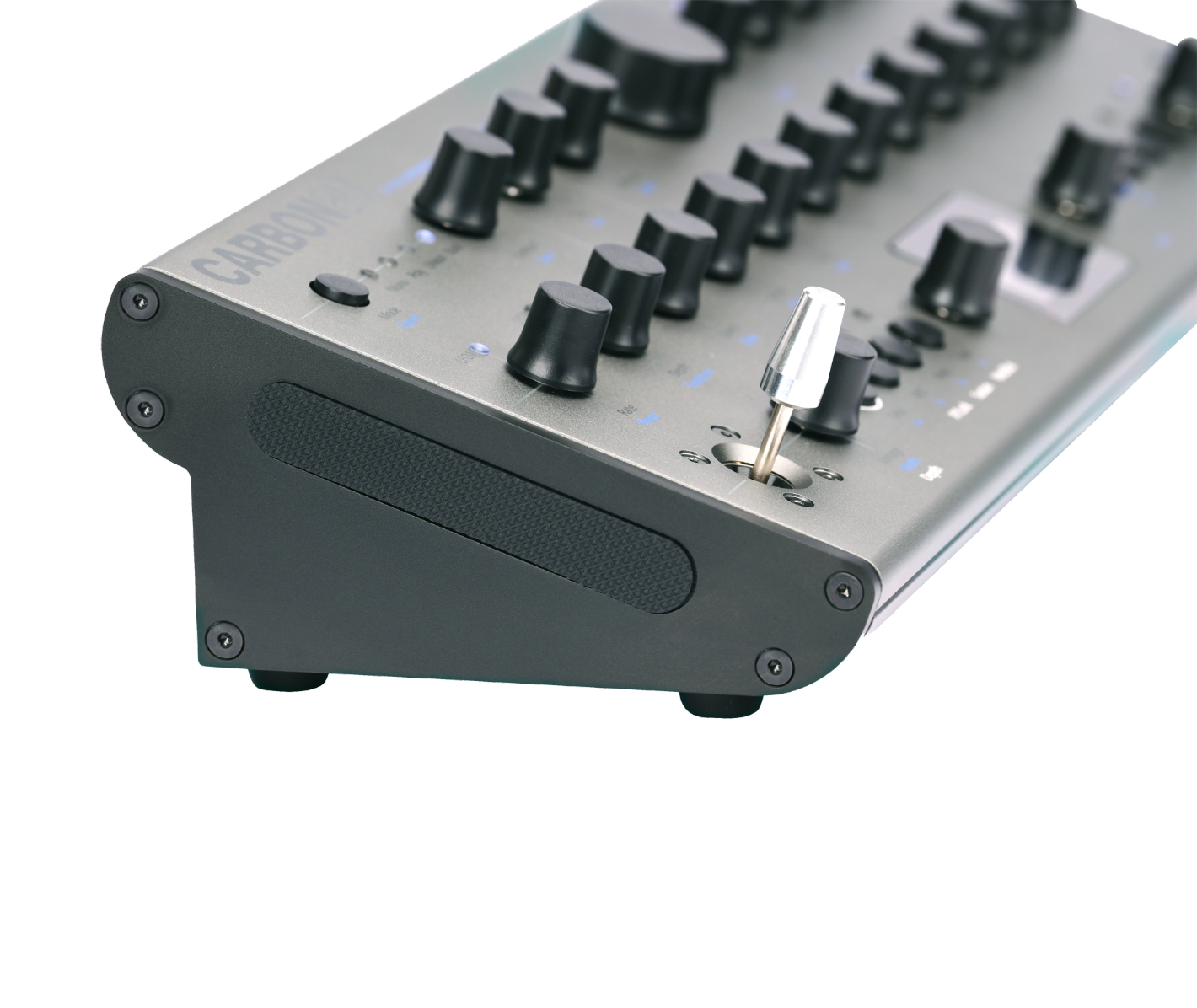

Enclosure and Display

Tabletop-style enclosure, brackets for 19″ 3U rackmount included (requires 1U free space above or right-angled connectors)

1.54-inch large OLED display for instant visual feedback at all times of playing/editing

Power

Power: DC-9.0V – 1.5A centre-positive

Editor Software

Free MODALapp software editor available for macOS, Windows, iOS and Android

MODALapp can also be run within your Digital Audio Workstation (DAW), with VST3 and AU versions available

General

Dimensions (L x W x H): 384 x 127 x 81 mm / 15.1″ x 5″ x 3.2″

Weight: 2.1 kg / 4.6 lbs
