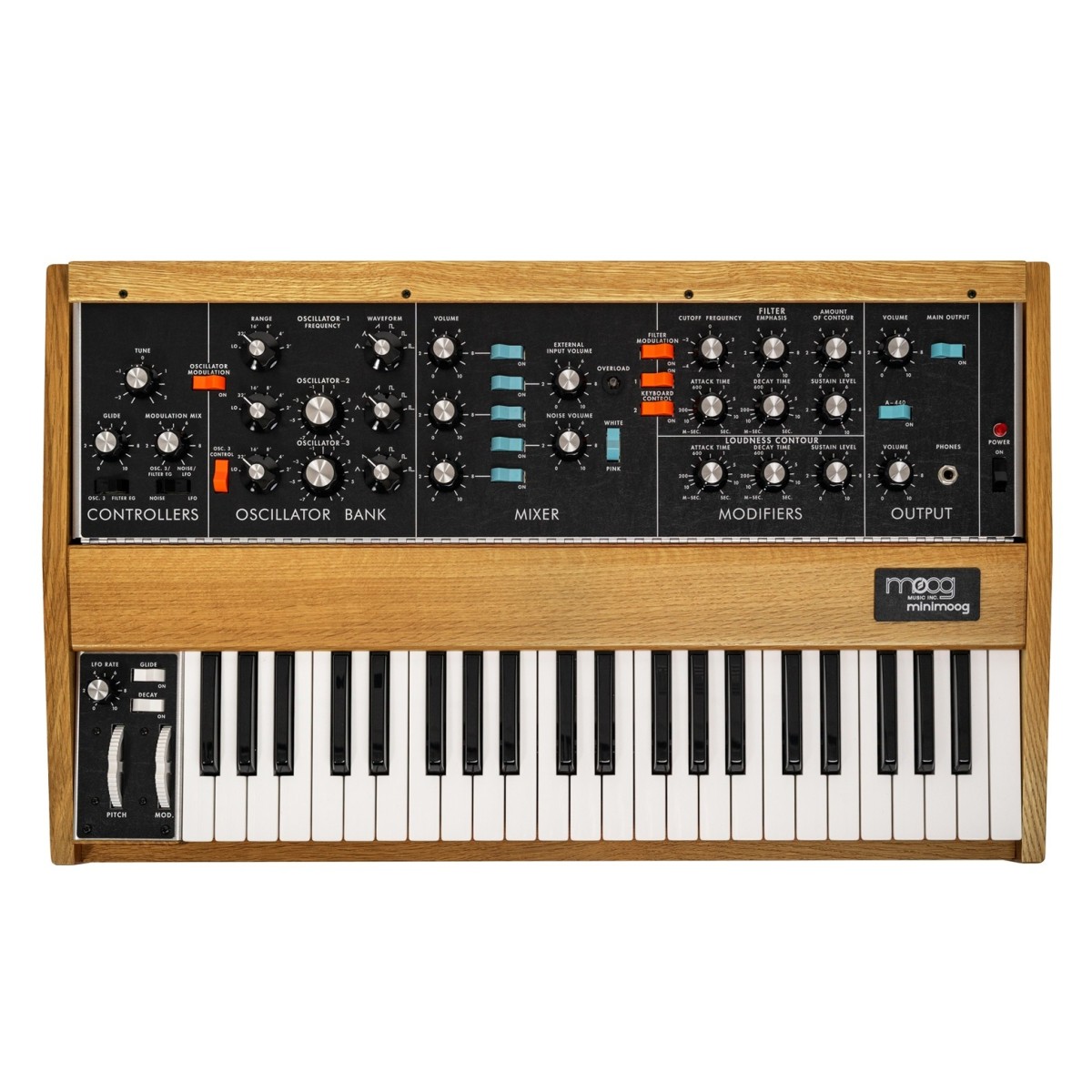

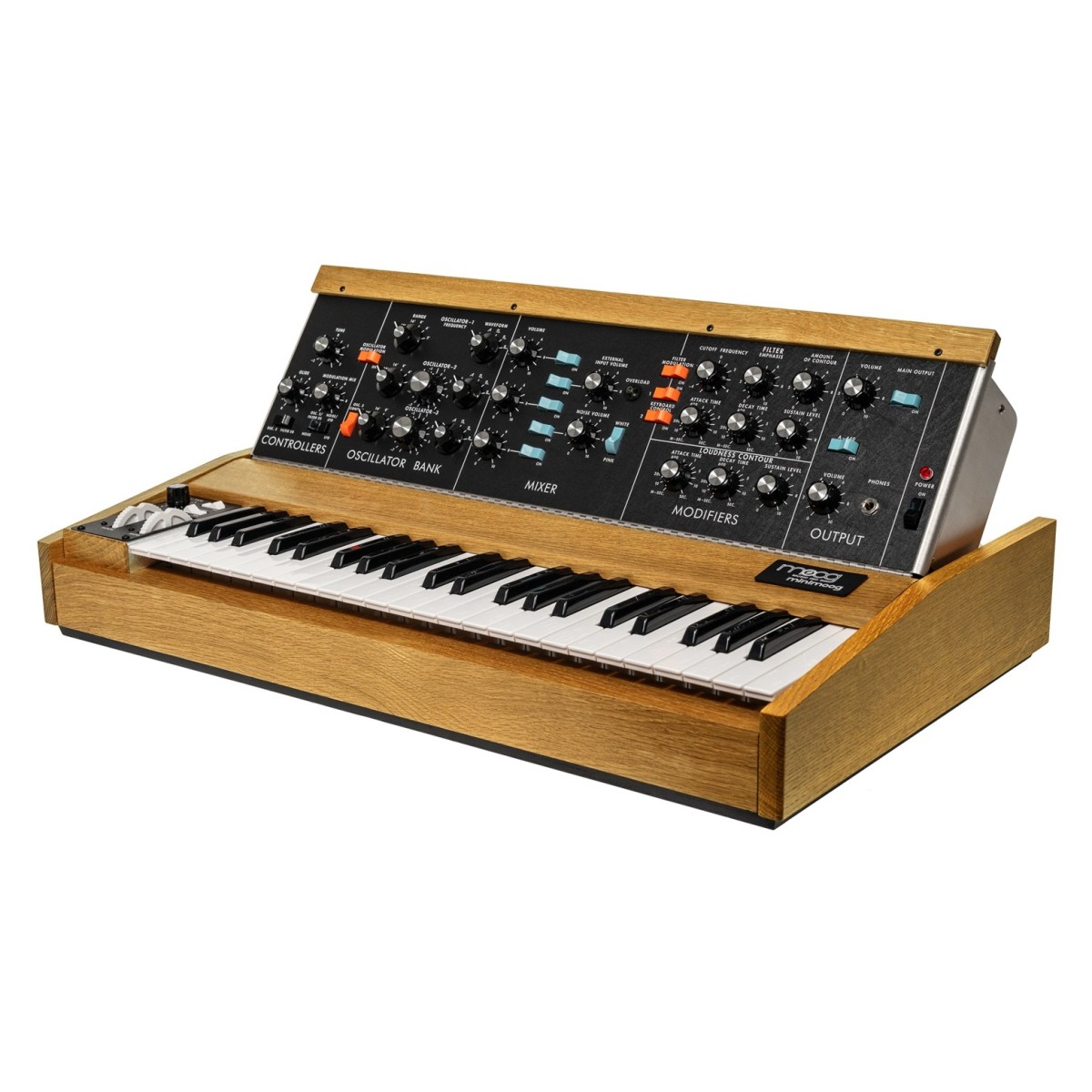

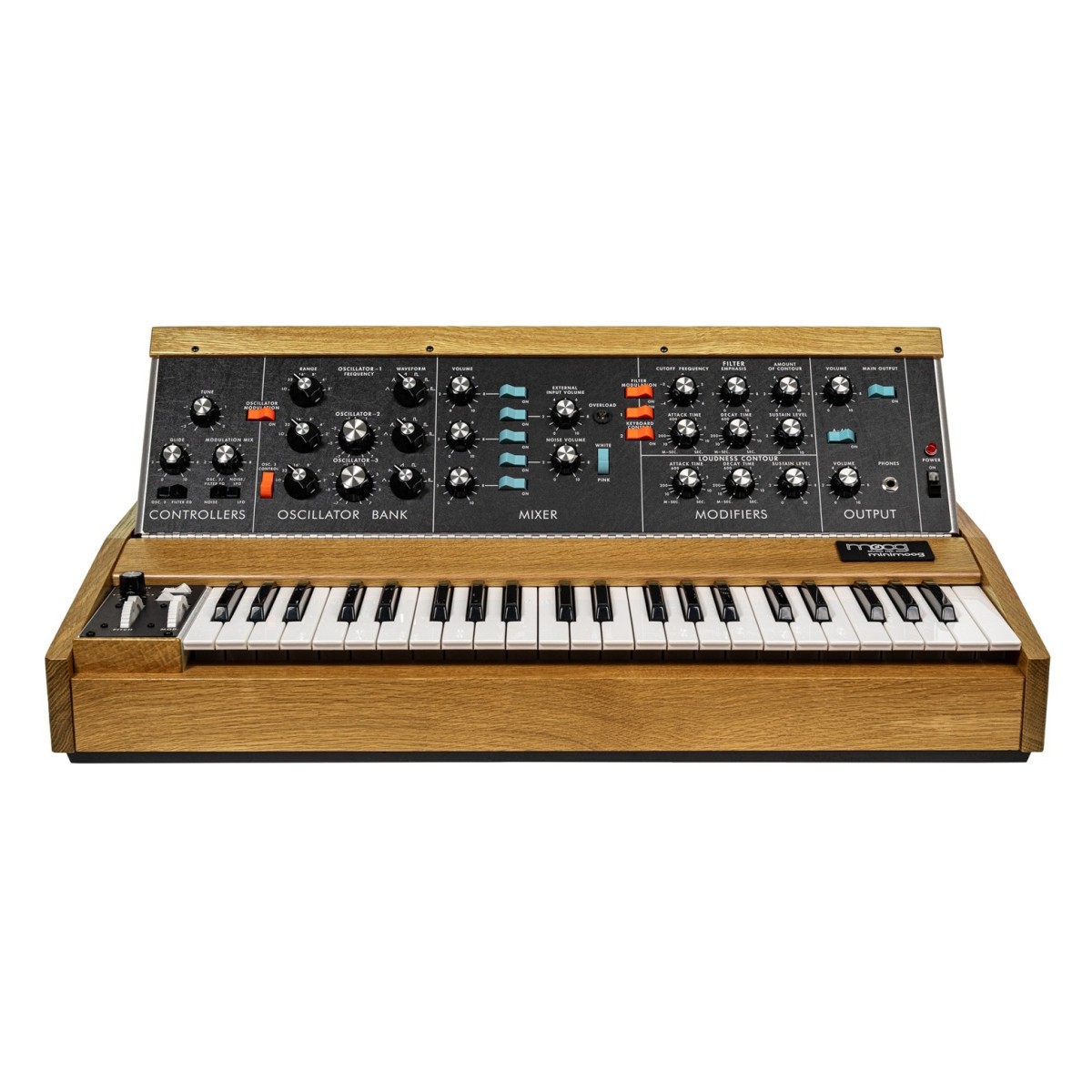

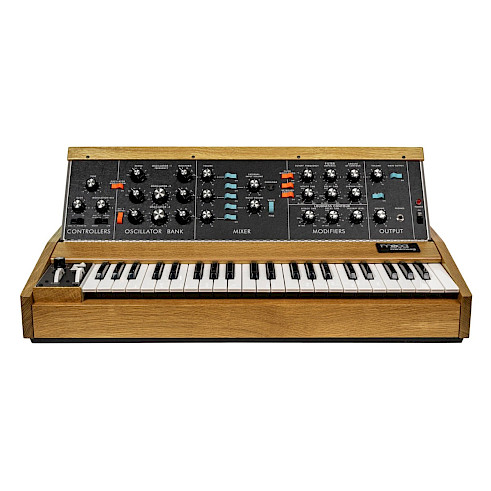

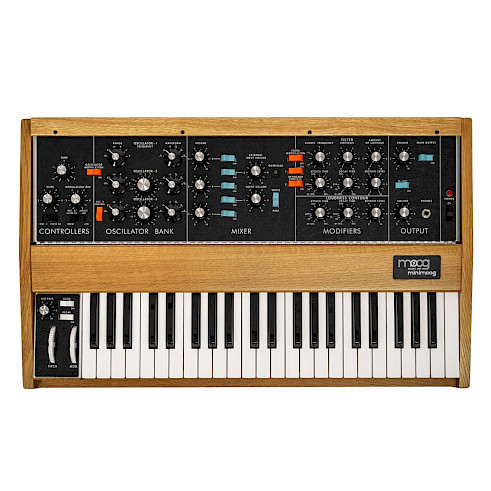

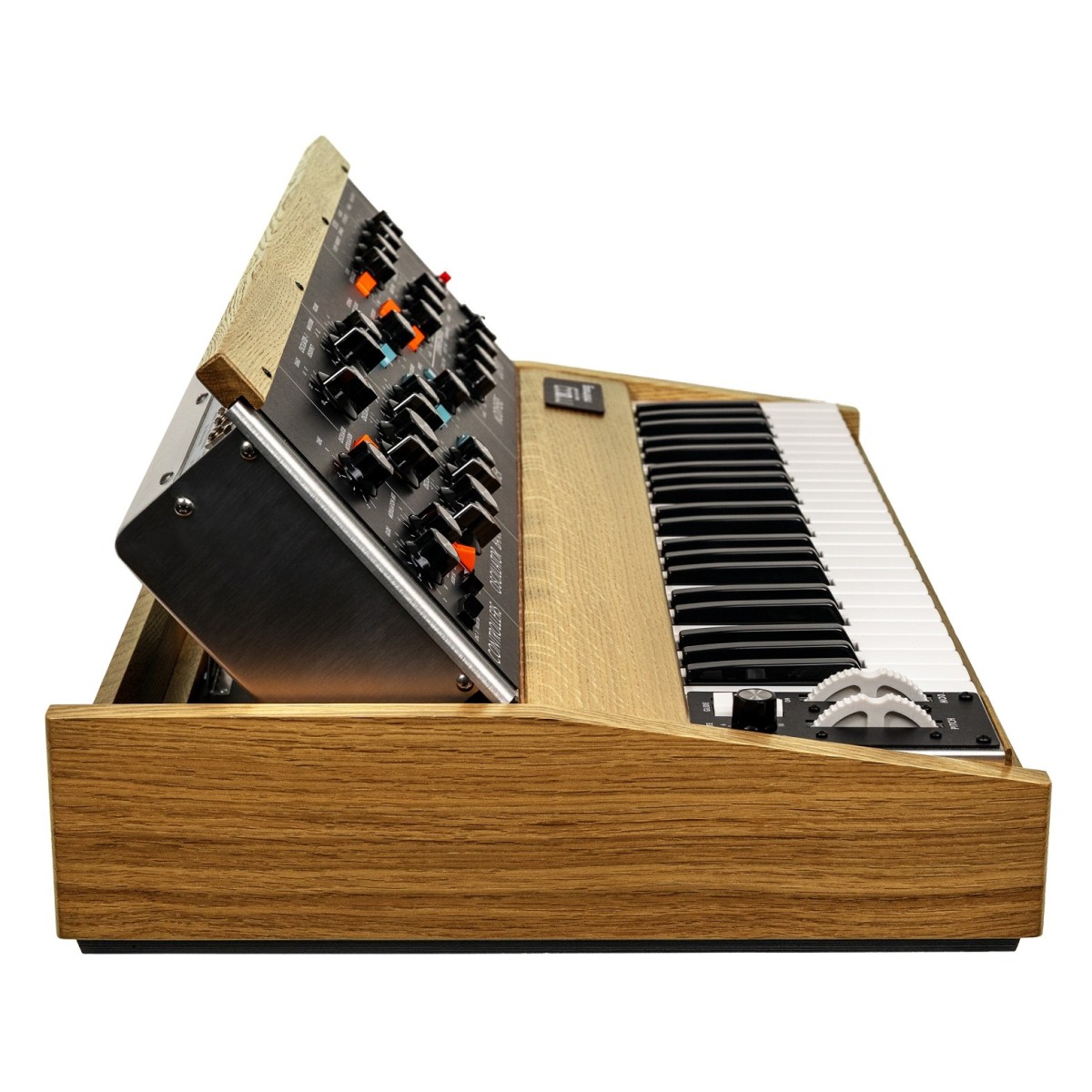

Moog Bob Moog Tribute Edition Minimoog Model D Inclusief Dedicated Semi‑rigid SR Series Travel Case, Limited Special Edition with Oak Housing

100% Analog Signal Path

Featuring a discrete analog mixer, analog oscillators, dual envelope generators, and analog VCA, every element of the Model D is engineered for deep, dynamic sound. Its all-analog signal path makes this synthesizer a standout in today's studios and stage setups.

The Iconic Ladder Filter 

The classic 24 dB/octave Moog ladder filter provides the unmistakable resonance and smooth cutoff sweep that defined the sound of the synthesizer. From round, warm bass tones to sharp peaks, the filter remains one of the most celebrated designs in analog synthesis.

Feature Enhancements

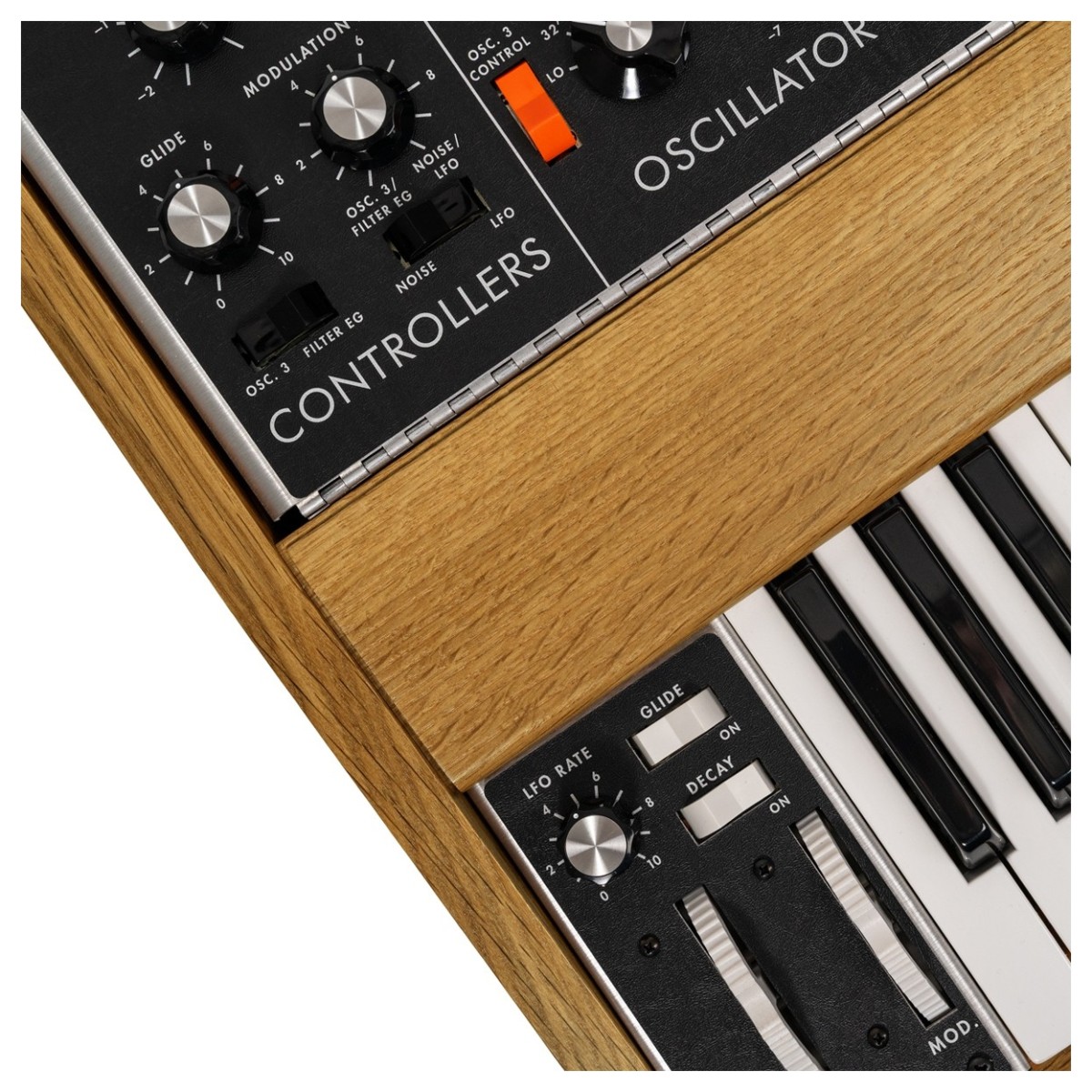

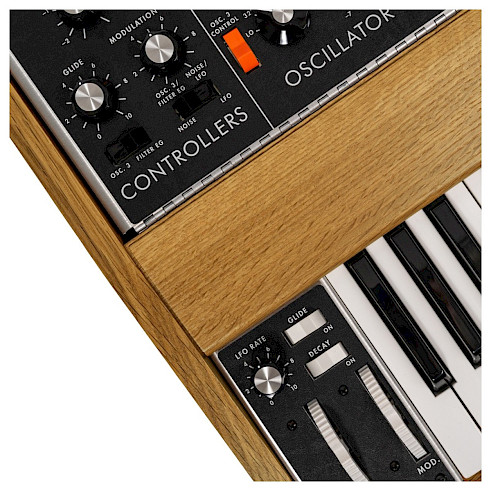

While faithful to the original 1970s design, the Bob Moog Tribute Edition Minimoog Model D includes modern enhancements like a dedicated LFO mode for Oscillator 3 and expanded modulation routing, a premium Fatar keybed with velocity and after-pressure, MIDI integration, and a spring-loaded pitch wheel. These additions allow for greater expression and deeper sound design while preserving the traditional front-panel workflow.

Modern Connectivity

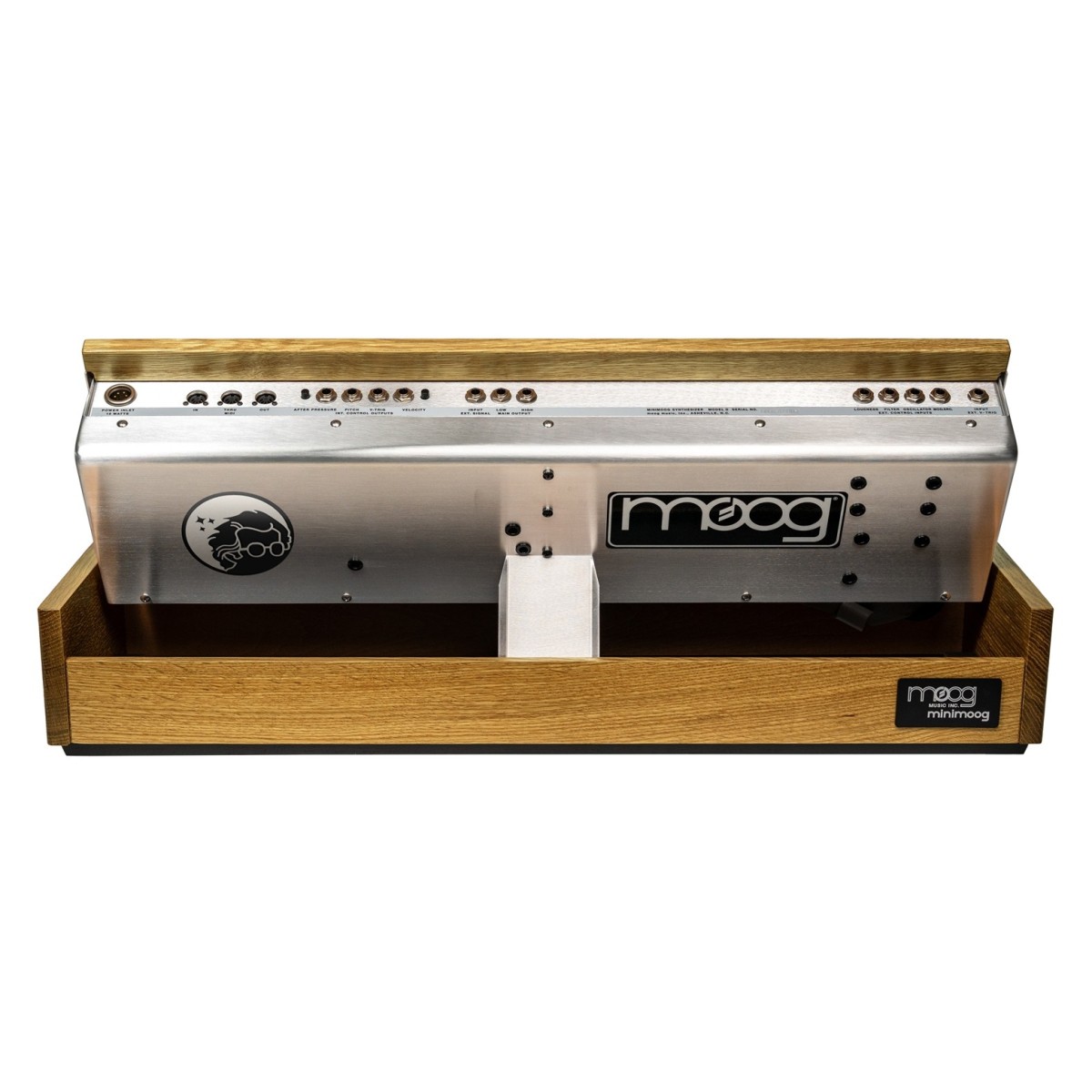

This edition of the Model D integrates seamlessly into contemporary setups with MIDI In/Out/Thru, CV and Gate inputs/outputs, and an external audio input for processing other instruments through the legendary filter and amplifier section.

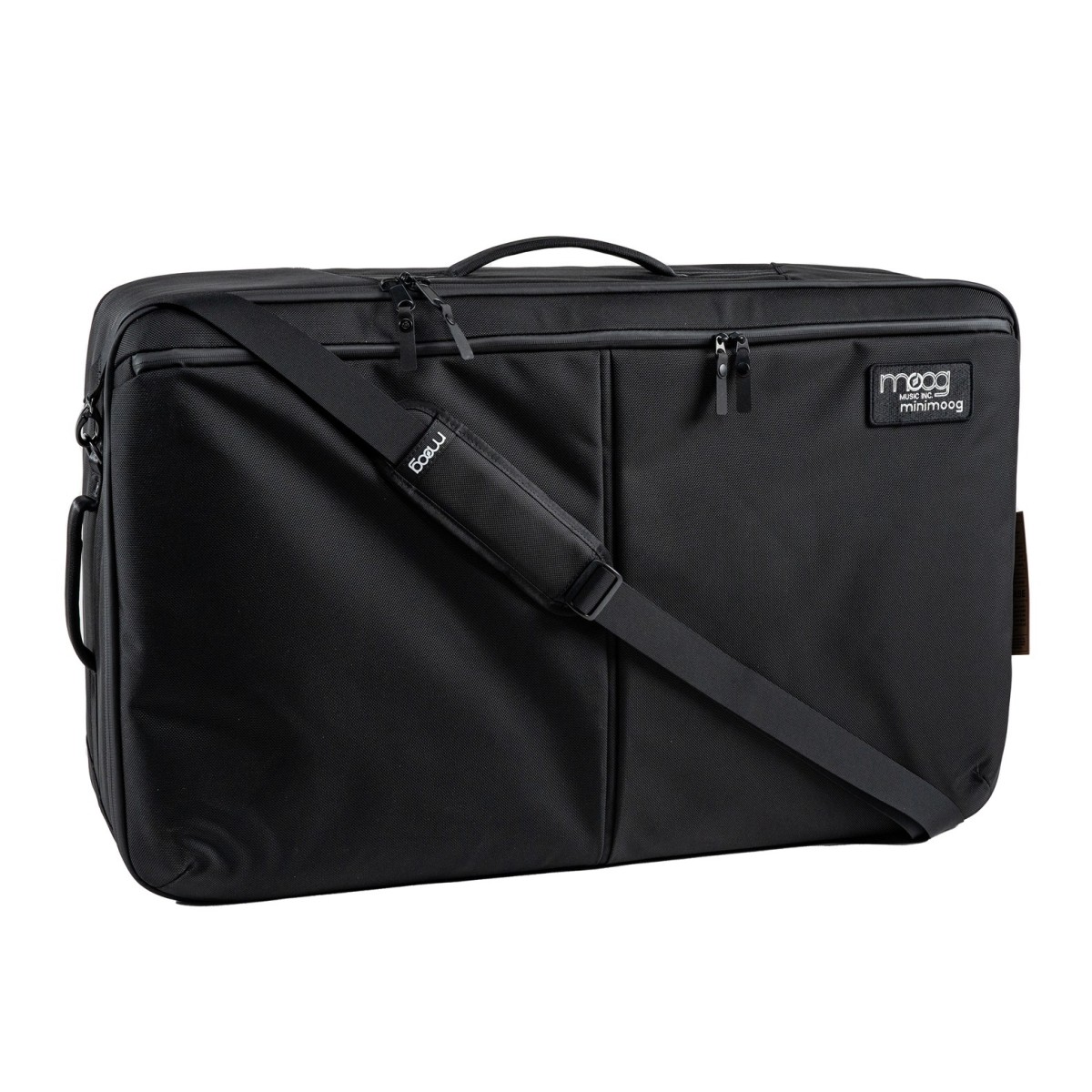

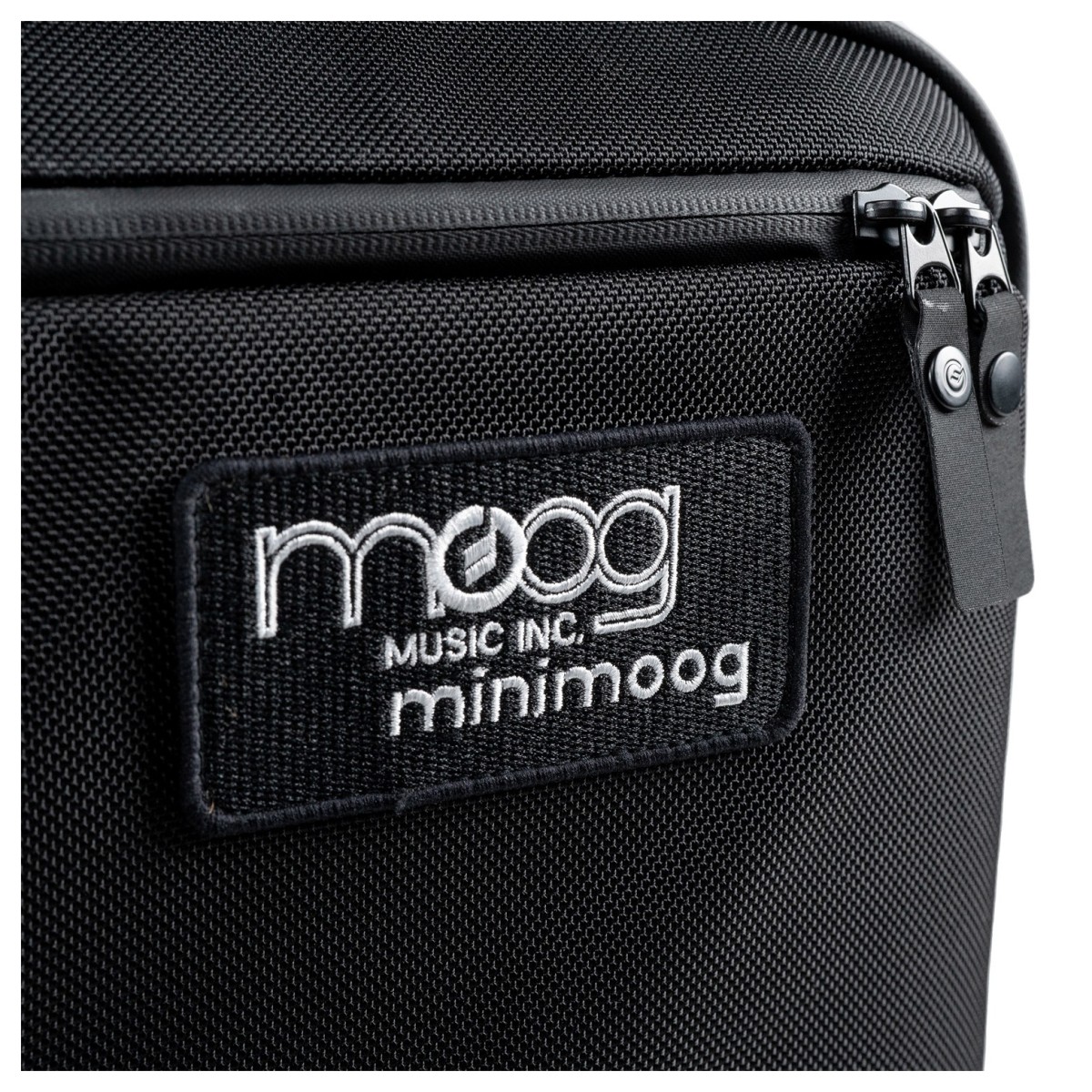

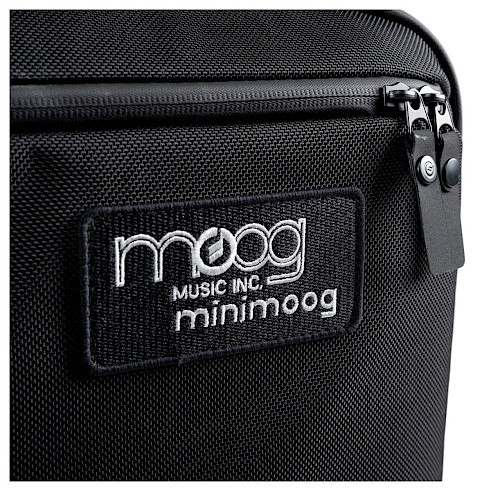

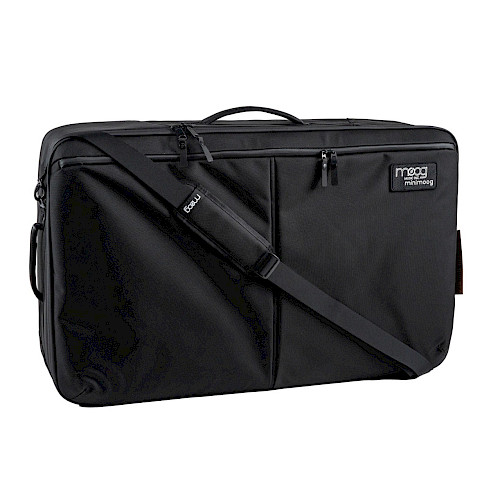

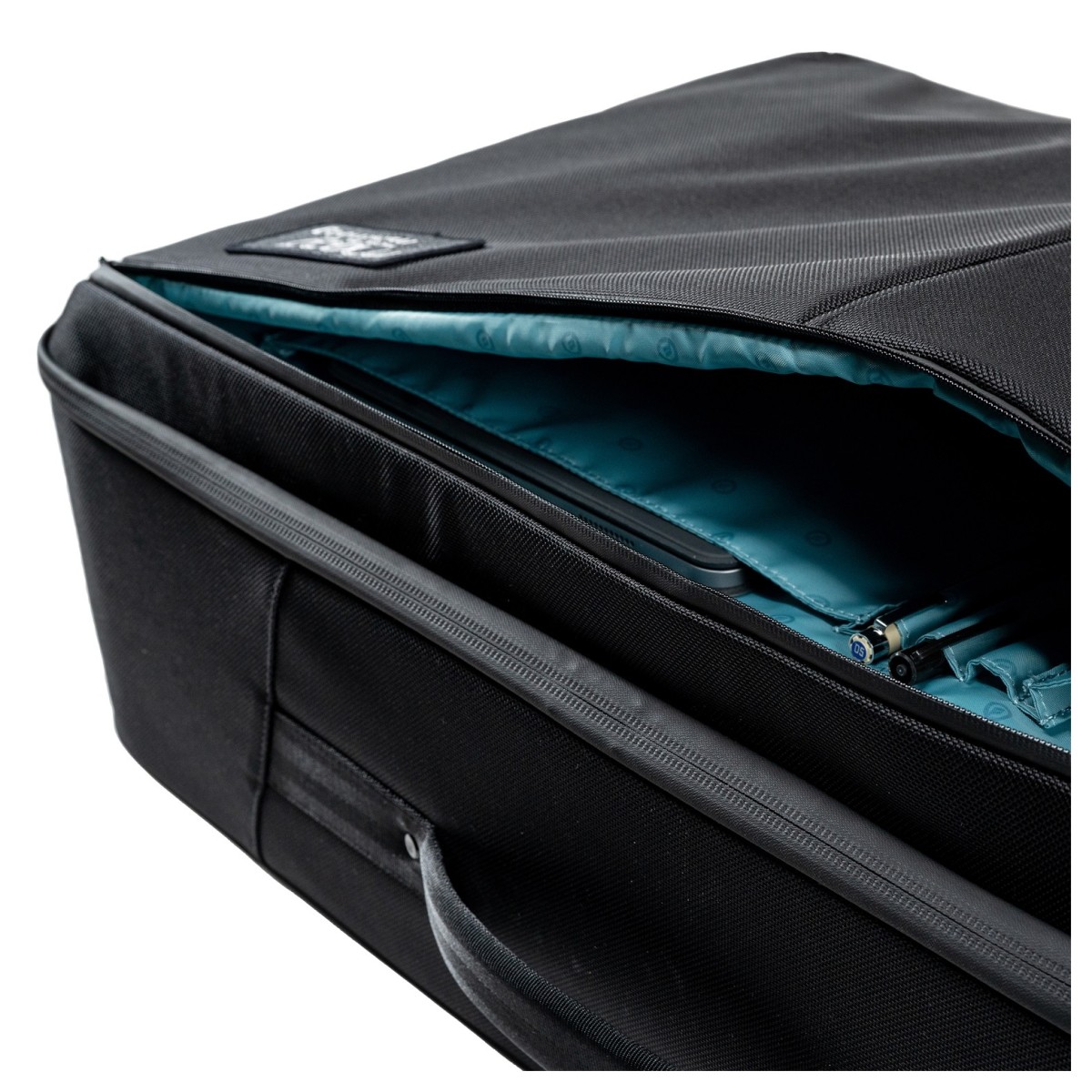

Custom Protective Case

Every Bob Moog Tribute Edition Minimoog Model D includes a semi-rigid case designed specifically for this instrument, providing protection for transport while on the road or simply traveling from home to the studio.

Support for the Bob Moog Foundation

To honor Dr. Bob Moog’s legacy and impact on modern music technology, $500 from each unit sold will be donated directly to the Bob Moog Foundation, supporting the Moogseum, Dr. Bob’s Sound School, and the preservation of the Bob Moog Foundation Archives.

Tech Specs: Bob Moog Tribute Edition Minimoog Model D

• DIMENSIONS (WITH PANEL FULLY LOWERED)
• Width: 28.625" / 727 mm
• Depth: 17.125" / 435 mm
• Height: 5.75" / 146 mm
• Net Weight: 32 lbs. / 14.5 kg.
• TEMPERATURE
• Storage Temperature: 5F to 140F (2C to 60C)
• Nominal Operating Temperature: 50F to 95F (10C
• to 35C)
• Operational Temperature: 50F to 122F (10C to 50C)
• SOUND SOURCES
• Oscillators x 3
• Noise Generator
• External Input
• OSCILLATORS
• Frequency Range: 0.1 to 20kHz (In Six Overlapping Ranges)
• Oscillator Stability (short term) > 0.25 %
• Waveforms:
• Triangle
• Triangle-Sawtooth (Oscillator-1, Oscillator-2)
• Reverse Sawtooth (Oscillator-3)
• Sawtooth
• Rectangle
• Wide Pulse
• Narrow Pulse
• NOISE GENERATOR
• White and Pink
• LFO
• Rate: 0.05Hz to 200Hz
• Waveform: Triangle (knob down); Square (knob up)
• EXTERNAL INPUT
• Input Range: +10 millivolts to +2 volts
• Input Impedance: 1MEGOhms
• FILTER
• Filter Type: Voltage-Controlled Low Pass
• (Moog Ladder Filter)
• Cutoff Frequency Range:
• 10Hz to 20kHz
• Filter Slope: 24dB per Octave
• Filter Resonance: At Cutoff Frequency
• CONTOUR GENERATORS
• Attack Time: 1 millisecond to 10 seconds
• Decay Time: 4 milliseconds to > 35 seconds
• Sustain Level: 0 to 100% of Contour peak
• Filter Contour Width: 0 to 4 Octaves
• VOLTAGE-CONTROLLED AMPLIFIERS (VCA)
• Loudness Contour Dynamic Range: 80dB
• AUDIO INPUT LEVELS
• 1/4" External Signal Input Voltage: +10 millivolts (min); +10 volt (max)
• Nominal Input Impedance: 100KOhms
• AUDIO OUTPUT LEVELS
• High Level Output Typical Voltage: 0.5 volts
• Maximum Voltage: 4.2 volts (peak-to-peak)
• Nominal Output Impedance: 3KOhms
• Low Level Output (30dB below High level)
• Typical Voltage: 15 millivolts
• Nominal Output Impedance: 1KOhms
• Headphone Output (stereo)
• Maximum Voltage: 0.3 volts
• Output Impedance: 8Ohms
• KEYBOARD
• Key Action: Synthesizer (Spring)
• Number of Keys: 44
• Key Range: FO to C4
• Priority (Low, High, Last): User Selectable
• Hardwired Connections: Oscillator-1 (Pitch)
• Oscillator-2 (Pitch)
• Filter Contour (Trigger) Loudness Contour (Trigger)
• Switchable Connections: Oscillator-3 (Pitch)
• Filter (Keyboard Tracking 1/3) Filter (Keyboard
• Tracking 2/3)
• Typical Voltage: 0.5 volts
• Maximum Voltage: 4.0 volts (peak-to-peak)
• Nominal Output Impedance: 3KOhms
• Glide Rate (octave): 1 millisecond to 10 seconds
• Pitch Bend Range: (+/-) 7 semitones
