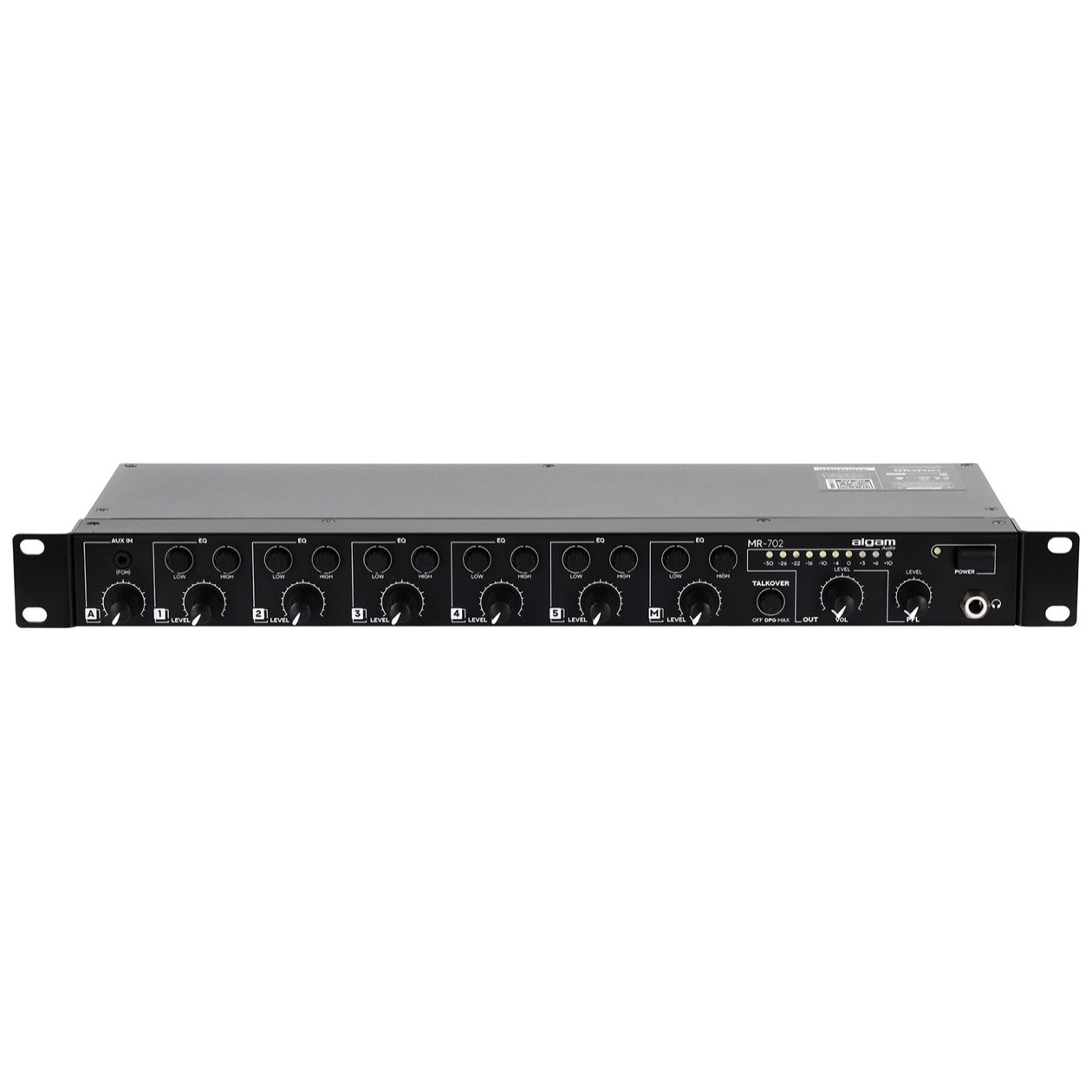

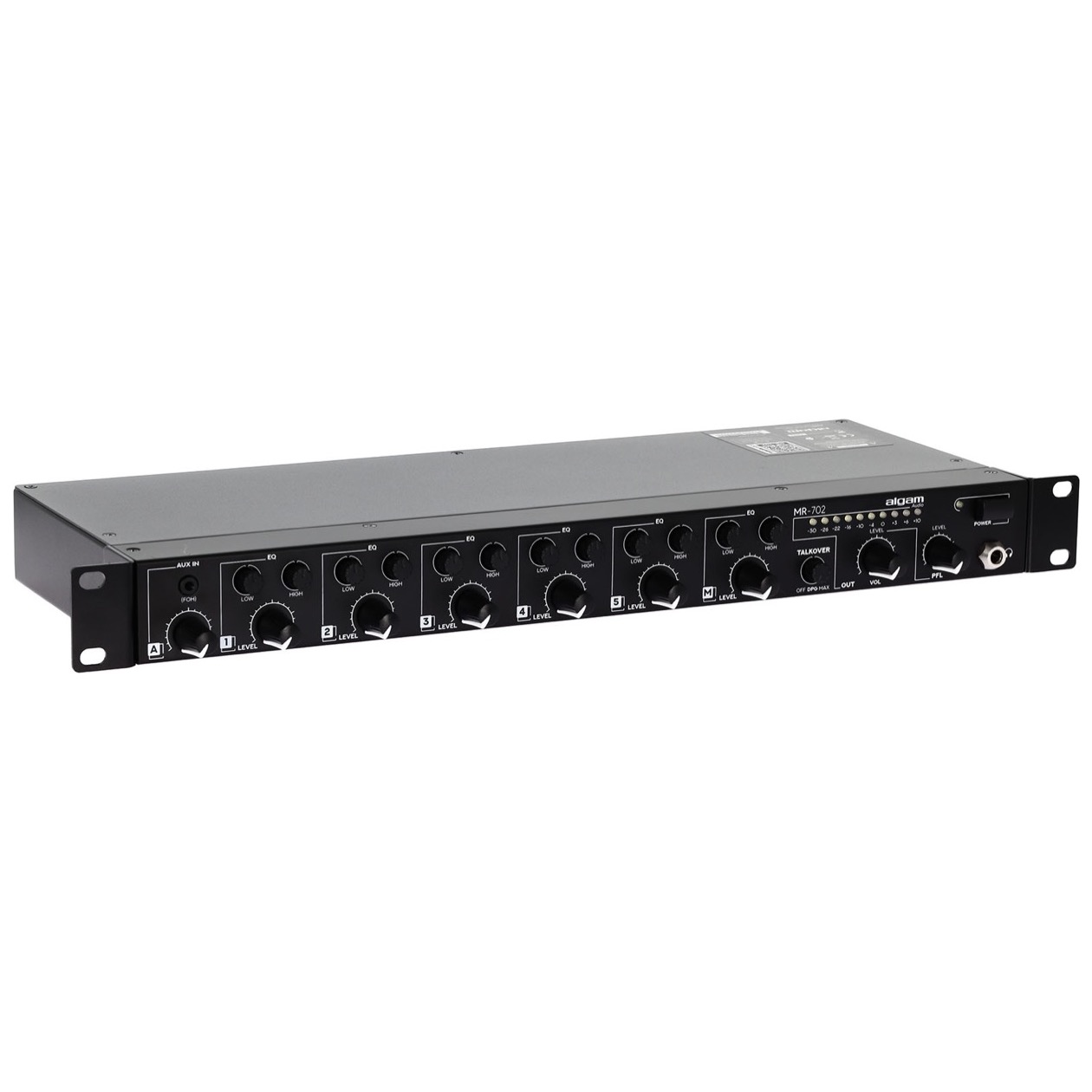

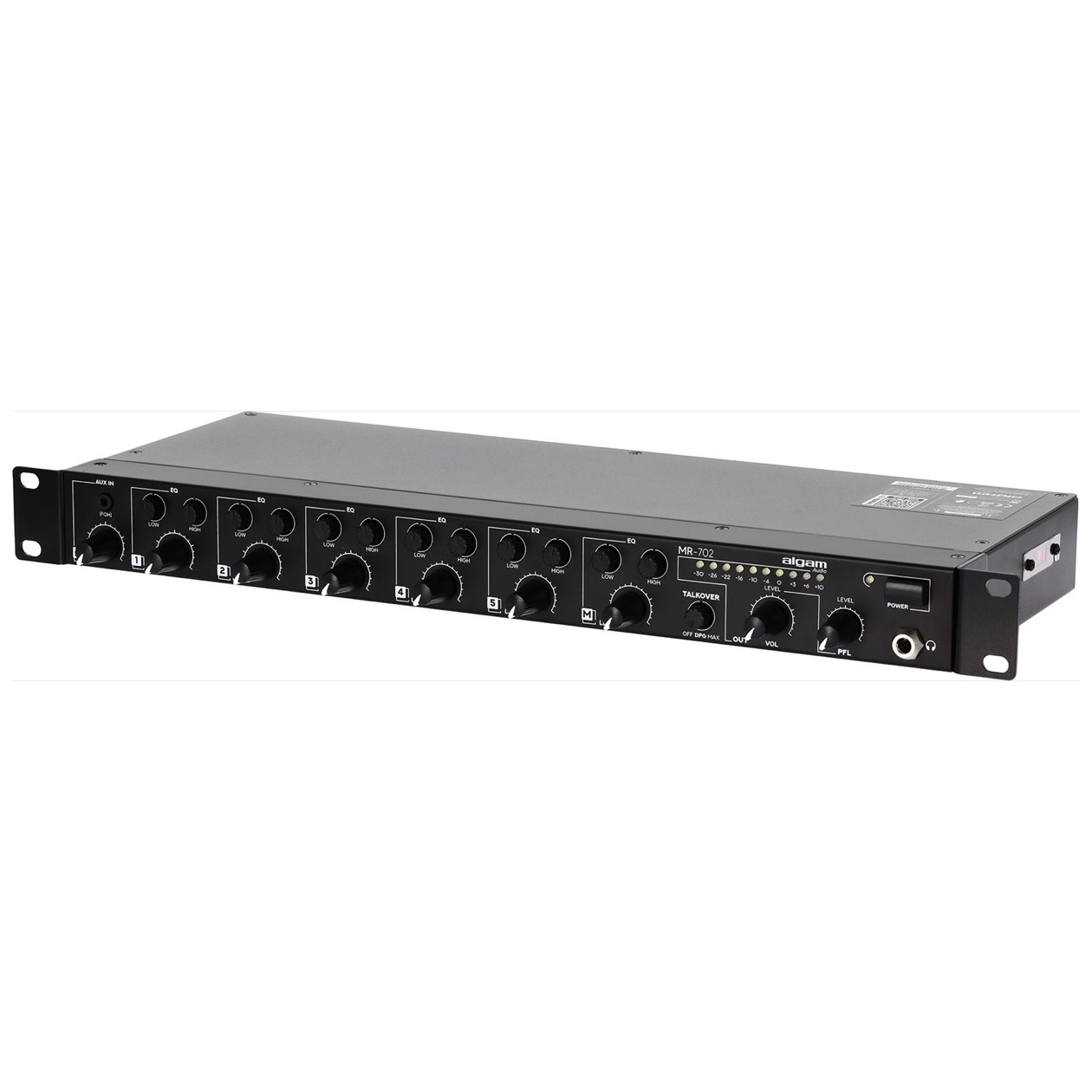

Algam Audio MR 702 / MR702 - 7 - channel rack-mount mixer

- Channels 1 to 5: balanced TRS jack microphone input and unbalanced RCA line input, switchable
- Channels 1 to 5 controls: gain, mic/line switch, level, 2-band EQ
- Channel A (FoH): 2 balanced TRS jack inputs, and 1 3.5 mm minijack input with automatic switching when a source is connected
- Channel A controls: level
- Channel M (Priority Mic): balanced TRS jack microphone input
- Channel M controls: gain, talkover attenuation control, talkover threshold
- Talkover adjustment on channel M to automatically lower the music level when an announcement is made over the microphone
- Emergency input in Euroblock format: deactivates the broadcast of all sources through the main output when a signal is detected on this input, and broadcasts the emergency message.
- Output Mute: cuts off the main output by short-circuiting the contacts
- Advanced settings via jumpers on the PCB: phantom power for microphones on channels 1 - 5, phantom power for microphone on channel M, priority for the emergency microphone (muting all other microphones if an emergency signal is received on the Emergency input)

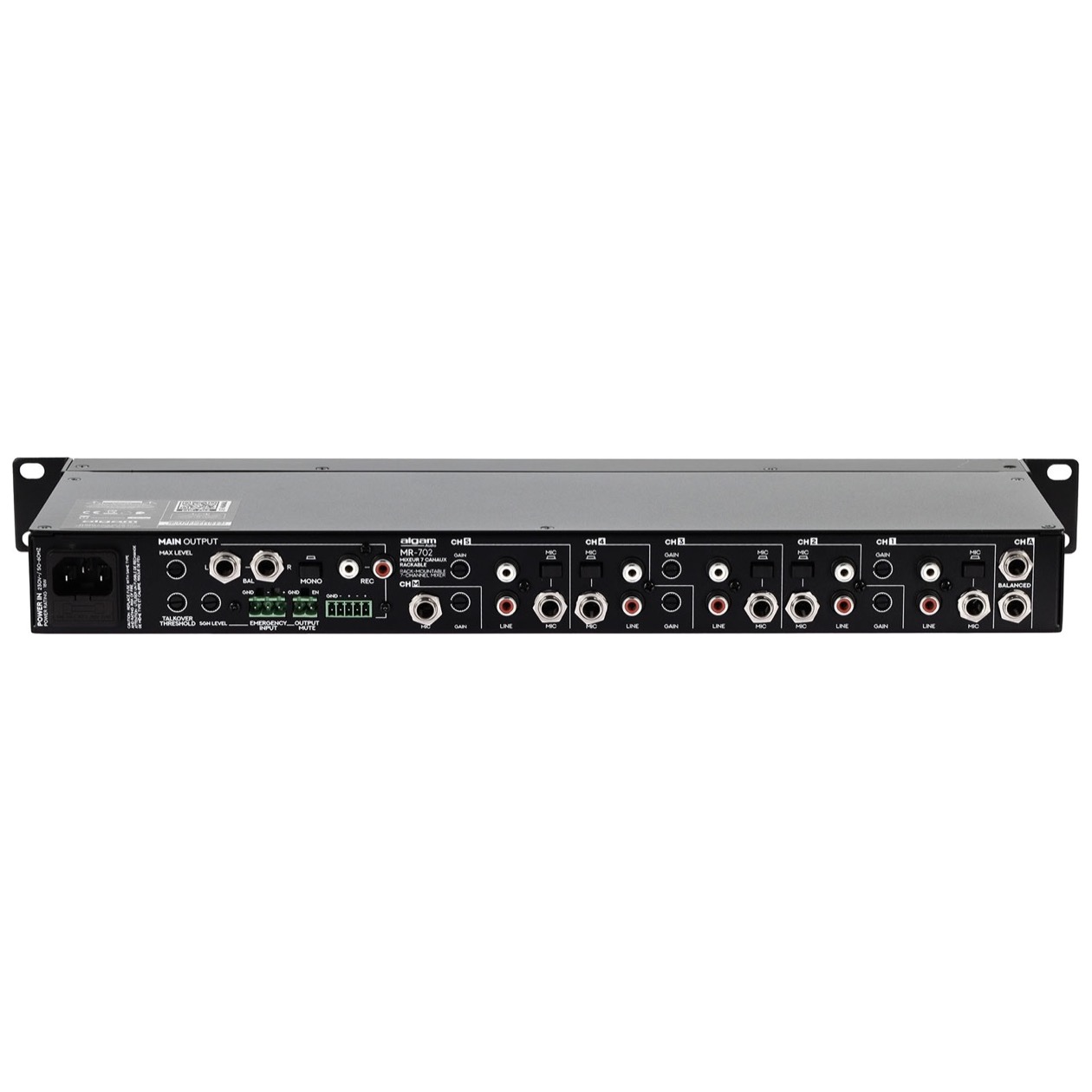

- Main outputs: 2 balanced TRS jacks and a Eurobloc
- Main output controls: general volume, maximum output level, Mono switch for summing the main output in mono
- RCA recording output
- 6.35 mm jack headphone output with PFL level control
- Main output level indicator (before limiter action if necessary): 10 LEDs
- Power button with status LED
