Algam Audio MSR 6226 / MSR6226 - Rackmount 6-in-2 Mixer / 2-in-6 Splitter

The MSR6226 is a versatile audio mixer/splitter designed for installation applications. It combines mixer and splitter functions in a single compact unit, offering a wide selection of inputs and outputs, as well as flexible audio signal routing capabilities. This makes it an ideal solution for a variety of audio scenarios, from live sound reinforcement to public address systems.

Mix up to 6 sources with 6-into-2 mixer mode

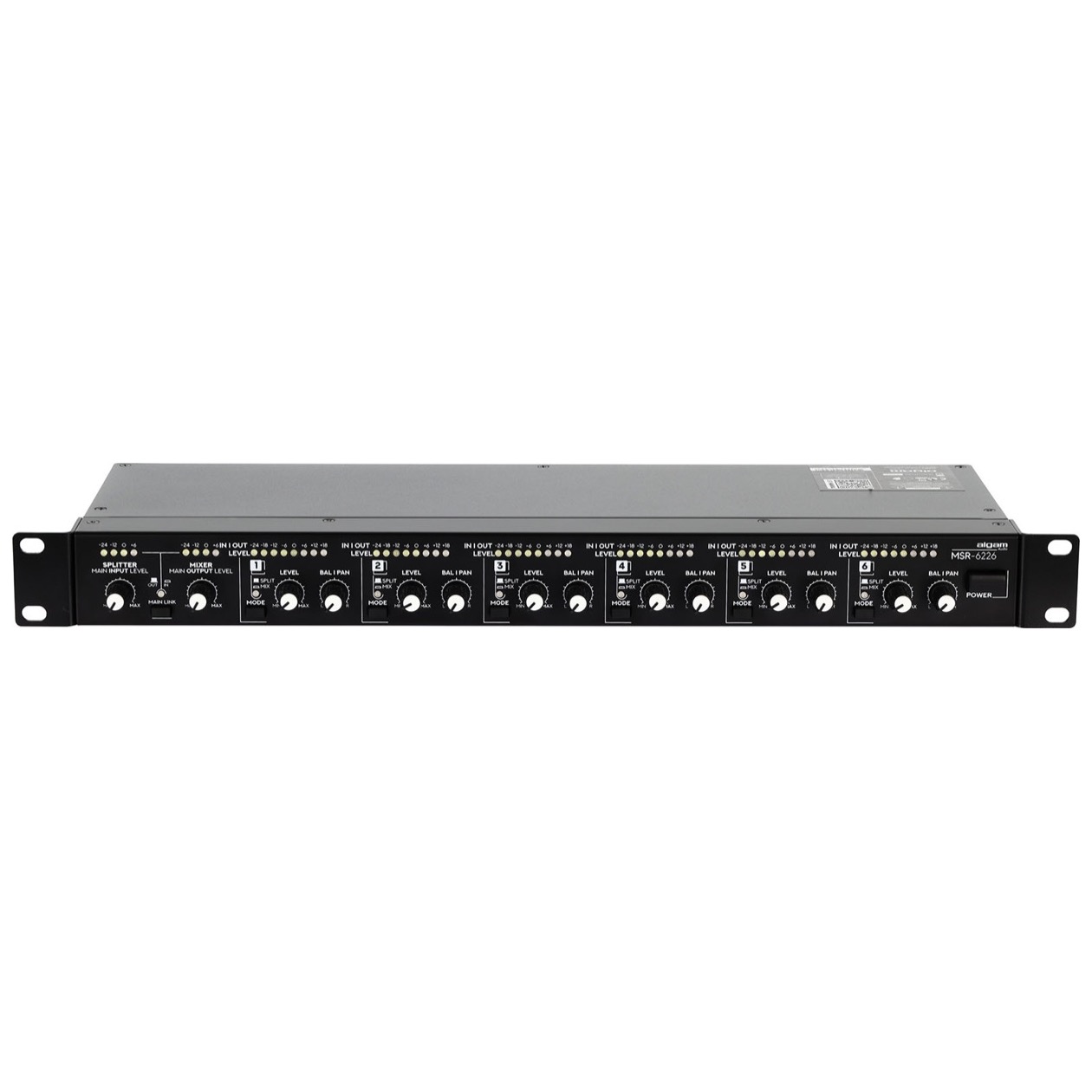

The MSR 6226 features six independent input channels, each equipped with a level control, pan/balance adjustment and an 8-LED level meter. These channels can be independently configured as inputs for mixing or as outputs for splitting via a MODE switch on the front panel, providing maximum flexibility in signal routing.

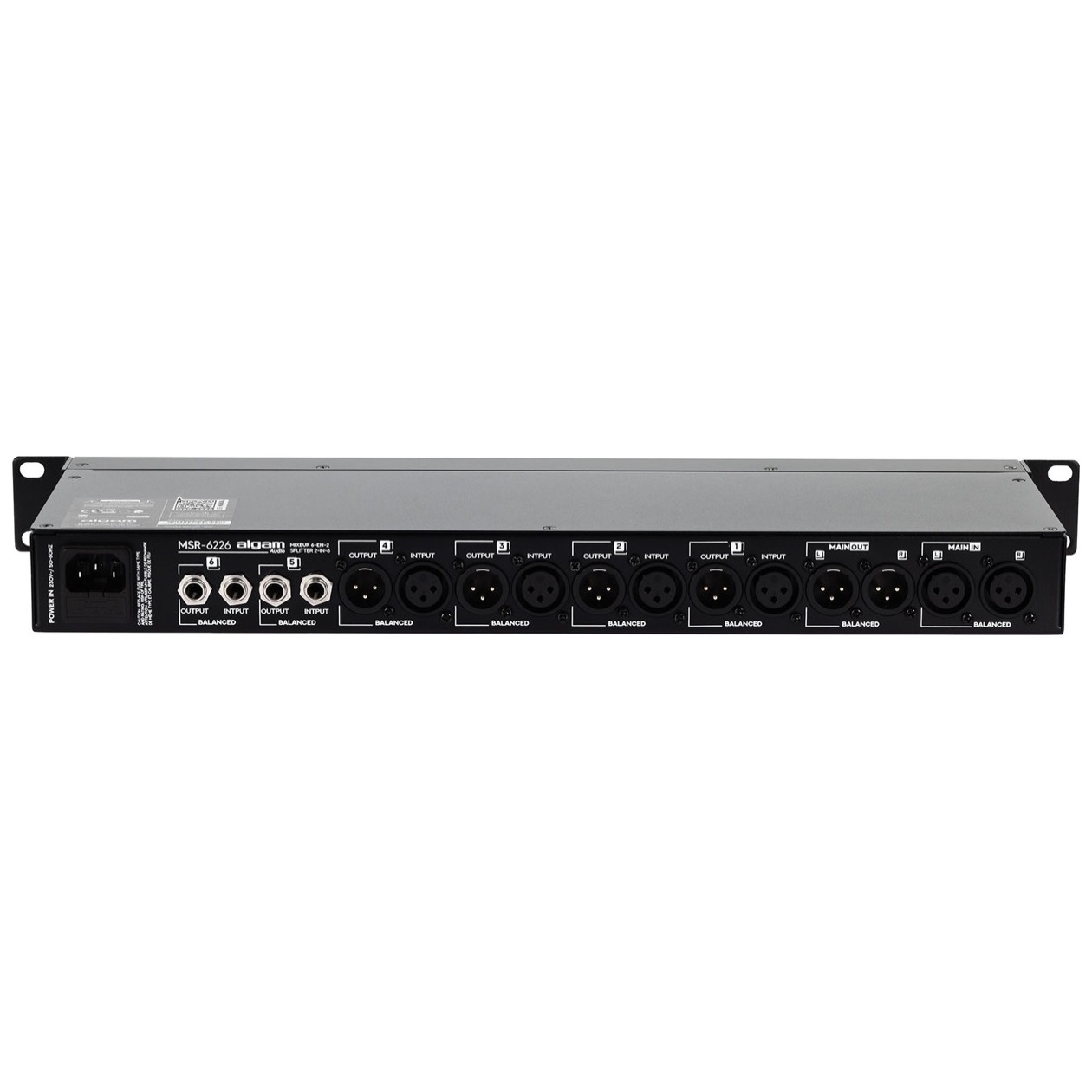

The rear panel of the MSR 6226 offers a comprehensive connectivity, consisting of an XLR input and output on channels 1 to 4, and a balanced jack input and output on channels 5 and 6. The channel I/O is completed by a Main LR input for splitter applications, allowing a signal to be sent to the individual XLR outputs of each channel, while the Main LR output is dedicated to summing and sending a stereo signal to a single destination.

A 2-in / 6-out splitter to distribute your audio signal
In addition to its mixing capabilities, the MSR 6226 excels as an audio signal splitter. Each of the six input/output channels can be independently switched between mixer and splitter mode, allowing a single signal to be distributed to multiple destinations via the XLR outputs of each channel. This makes the MSR 6226 perfect for applications such as zone distribution in audio systems in commercial structures, such as large retail outlets, or submixing in live sound reinforcement setups.

A compact and robust chassis for easy installations
The MSR 6226 is a compact audio mixer/splitter in 19" rack format, designed to meet the requirements of audio professionals and installers. Its small dimensions of 483 x 44.5 x 183.5 mm and its light weight of 2.2 kg make it an ideal tool for fixed installations in constrained environments such as shopping centers, bars or restaurants.
Integrated into a standard rack, the MSR 6226 optimizes space while offering rock-solid robustness. Its compact format greatly facilitates installation in technical cabinets, while ensuring appreciable discretion in visually sensitive environments.
